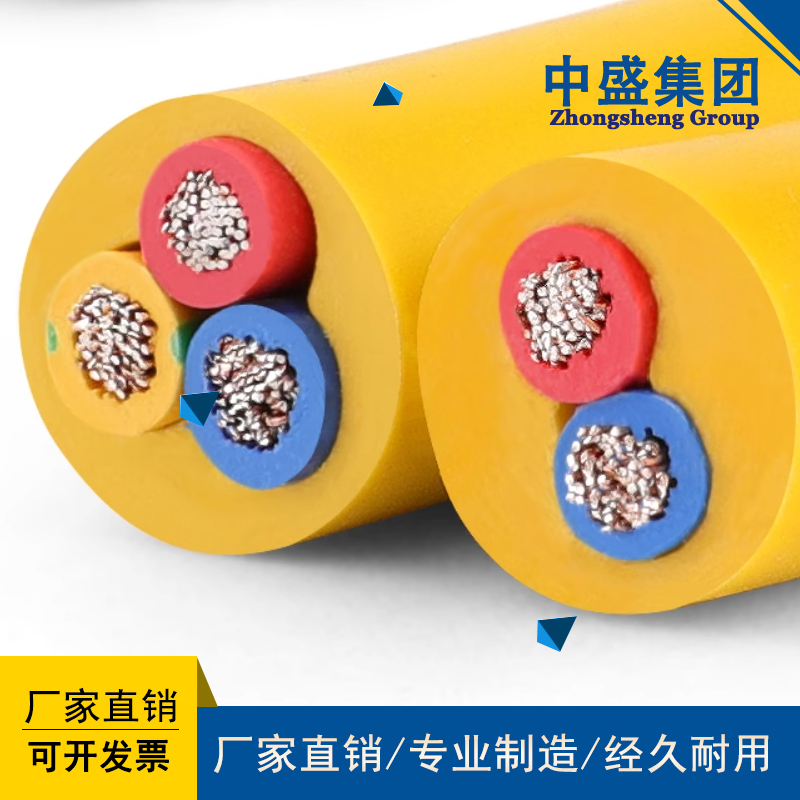

產品名稱：Oil resistant power flexible cable RVVY
瀏覽：
添加時間：2024-06-27 09:20:38
推薦度：

介紹：

耐油電纜RVVY適用于冶金、石油、化工以及發電廠等工礦企業，在高溫條件下和惡劣環境中（如酸、堿、油水低溫條件）作為各種電器、儀表及自動裝

Oil resistant cable RVVY is suitable for industrial and mining enterprises such as metallurgy, petroleum, chemical, and power plants. It is used as various electrical appliances, instruments, and automatic equipment in high temperature conditions and harsh environments (such as acid, alkali, and oil-water low temperature conditions)

接線，供交流額定電壓450/750伏及以下控制、及保護電路行裝場合下使用。

Wiring, for use in control and protection circuit installations with rated AC voltage of 450/750 volts and below.

耐油電纜使用于需要長時間接觸油污、酸堿或直接浸泡在油里面使用的環境中，即使24小時浸泡在油里面或酸堿濃度為80%以下的環境中，電纜的柔性

Oil resistant cables are used in environments that require long-term contact with oil, acid or alkali, or direct immersion in oil. Even if immersed in oil for 24 hours or in environments with an acid or alkali concentration of less than 80%, the flexibility of the cable is improved

會改變，可以隨機器進行收展或移動使用。

It will change and can be extended or moved with the machine for use.

耐油電纜RVVY的相關參數：耐油電纜導體：多股超細精絞無氧銅絲，符合VDE0295CLASS 6標準；耐油電纜絕緣：特殊混合PVC絕緣；耐油電纜顏色

The relevant parameters of oil resistant cable RVVY: Oil resistant cable conductor: Multi strand ultra-fine twisted oxygen free copper wire, in accordance with VDE0295CLASS 6 standard; Oil resistant cable insulation: special mixed PVC insulation; Color of oil resistant cables

≤0.5mm 顏色表示，棕、黑、藍、紫、粉紅、橙，≥0.5mm 黑色數字白色號碼編號，3芯以上帶有黃綠接地線（黃綠可選）分色；耐油電纜護套：特殊

≤ 0.5mm color indicates brown, black, blue, purple, pink, orange, ≥ 0.5mm black numbers with white numbers, with yellow and green grounding wires (yellow and green optional) for 3-core and above color separation; Oil resistant cable sheath: special

PVC護套，強力擠壓式生產。黑色或灰色；耐油電纜額定電壓：300/500V；測試電壓：2500V；使用溫度范圍：耐油電纜固定安裝： -40°C 至 +70°C

PVC sheath, produced by strong extrusion. Black or gray; Rated voltage of oil resistant cable: 300/500V; Test voltage: 2500V; Temperature range: Oil resistant cable fixed installation: -40 ° C to+70 ° C

纜移動安裝： - 5°C 至 +70°C；耐油電纜小彎曲半徑：耐油電纜固定安裝：4×電纜外徑；耐油電纜移動安裝：15×電纜外徑。

Cable mobile installation: -5 ° C to+70 ° C; Oil resistant cable small bending radius: Oil resistant cable fixed installation: 4 x cable outer diameter; Oil resistant cable mobile installation: 15 x cable outer diameter.

耐油電纜RVVY為弱信號測量電纜，適用于易產生靜電、燃油池等特殊工作環境，具有防靜電、耐油、抗拉伸，抗彎折特性，電纜小彎曲半徑不小于電纜

Oil resistant cable RVVY is a weak signal measurement cable suitable for special working environments such as static electricity and fuel pools. It has anti-static, oil resistant, tensile resistant, and bending resistant characteristics. The small bending radius of the cable is not less than that of the cable

倍，電纜大承受拉力200kg，電纜卷繞彎曲收放次數3000次以上。

Multiple times, the cable can withstand a tensile force of 200kg and can be wound, bent, and retracted more than 3000 times.
